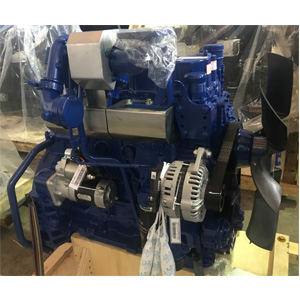

SDEC 4HTAA4.3 SHANGHAI DIESEL ENGINE

Category： SDEC DIESEL ENGINE
4HTAA4.3-G36
4HTAA4.3-G35
4HTAA4.3-G32
4HT4.3-G21
Product description：4HTAA4.3-G36 4HTAA4.3-G35 4HTAA4.3-G34 4HTAA4.3-G33 4HTAA4.3-G32 4HTAA4.3-G31 4HTAA4.3-G22 4HTAA4.3-G21 4HT4.3-G23 4HT4.3-G22 4HT4.3-G21
Order online

ITEMS	Engine Capacity 1500rpm(KW)		Engine Capacity 1800rpm(KW)		Emission III Com-rail Engine Model-G drive				Typical Generator Capacity(KW)
ITEMS	12h Power RPP	1h Power ESP	12h Power RPP	1h Power ESP	Model	No.s cylinder	Flywheel & Teeth		Prime Power 50HZ	Standby Power 50HZ	Prime Power 60HZ	Standby Power 60HZ
1	125	140	125	140	4HTAA4.3-G36	4	SAE 3/11.5	127 teeth	110	120	110	120
2	106	117	120	132	4HTAA4.3-G35	4			90	100	100	110
3	95	105	105	116	4HTAA4.3-G34	4			80	88	88	96
4	78	86	86	95	4HTAA4.3-G33	4			64	72	72	80
5	62	68	67	74	4HTAA4.3-G32	4			50	56	56	64
6	51	56	62	68	4HTAA4.3-G31	4			40	44	48	56

ITEMS	Engine Capacity 1500rpm(KW)		Emission II Com-rail Engine Model-G drive					Typical Generator Capacity(KW)
ITEMS	12h Power RPP	1h Power ESP	Model	No.s cylinder	Advance angle	Flywheel & Teeth		Prime Power 50HZ	Standby Power 50HZ
1	120	132	4HTAA4.3-G22	4	10°	SAE 3/11.5	127 teeth	104	116
2	95	105	4HTAA4.3-G21	4	10°			84	92
3	78	86	4HT4.3-G23	4	13.5°			72	80
4	62	68	4HT4.3-G22	4				54.4	60
5	51	56	4HT4.3-G21	4				44	48
