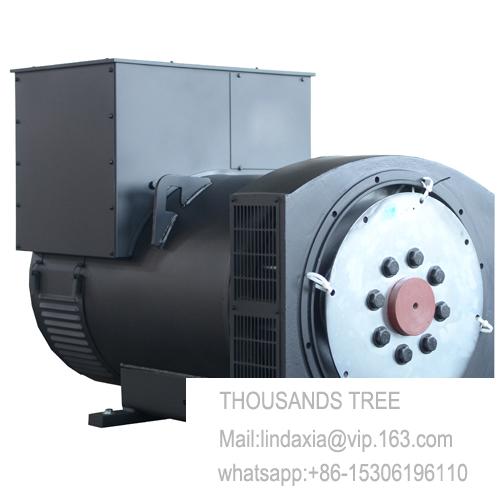

AKSA GENERATOR ALTERNATOR AK5200 AK5240 AK5260 AK5280 AK5300 AK5320

Product Item : AKSA GENERATOR ALTERNATOR AK5200 AK5240 AK5260 AK5
Category： AKSA ALTERNATOR
AKSA ALTERNATOR
4 poles 1500RPM 1800RPM
Three Phase Single Phase
Product description：AKSA GENERATOR ALTERNATOR AK5200 AK5240 AK5260 AK5280 AK5300 AK5320 Single Phase Three Phase 50HZ 1500RPM 60HZ 1800RPM
Order online

                                                                                                                                                                                                                                   Model Three Phase 50Hz 1500RPM        Three Phase 60Hz 1800RPM
Power Factor 0.8  0.8  0.8  0.8  0.8  0.8  0.8  0.8  0.8  0.8
Volts
Star(W12&W13)          380  400  415  440   380-416    416  440  460  480
Delta(W12&W13) 220     230  240  254         220-240    240  254  266  277
Series Star(W11&W14)   380  400  415  440  -  380-416  416  440  460  480
Parallel Star(W11&W14) 190  200  208  220  -  190-208  208  220  230  240
Series Delta           220  230  240  254  -  220-240  240  254  266  277
Parallel delta         110  115  120  127    110-120  120  127  133  138.5
Winding No.             11  11  11  11  13      14  11  11  11  11
Rating KVA KW KVA KW KVA KW KVA KW KVA KW KVA KW KVA KW KVA KW KVA KW KVA KW
AK5200 250 200 250 200 250 200 250 200 300 240 300 240 287.5 230 300 240 300 240 313 250
AK5240 300 240 300 240 300 240 280 224 350 280 350 280 340 272 360 288 360 288 375 300
AK5260 325 260 325 260 325 260 325 260 - - - - 408 325 408 325 408 325 408 325
AK5280 350 280 350 280 350 280 350 280 - - - - 408 325 408 325 408 325 408 325
AK5300 375 300 375 300 375 300 375 300 463 370 - - 463 370 463 370 463 370 463 370
AK5320 400 320 400 320 400 320 400 320 500 400 - - 454 363.2 480 384 500 400 500 400

AK6366 457.5 366 457.5 366 457.5 366 457.5 366 500 400 500 400 525 420 550 440 581 464.8 594 475
AK6400 500 400 500 400 500 400 500 400 625 500 625 500 575 460 594 475.2 625 500 644 515
AK6450 563 450 563 450 563 450 563 450 650 520 650 520 700 560 700 560 700 560 700 560
AK6480 600 480 600 480 600 480 600 480 688 550 688 550 681 544.8 713 570.4 732 585.6 750 600
AK6540 675 540 675 540 675 540 675 540 800 640 800 640 738 590.4 775 620 800 640 825 660
