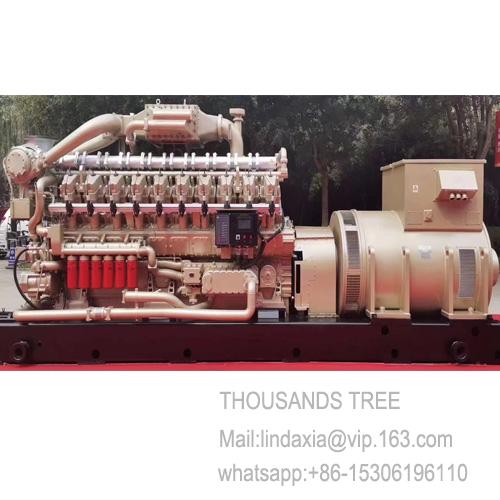

JICHAI GAS GENERATOR SET

Category： GAS GENERATOR SET
JICHAI GAS ENGINE
GAS GENERATOR SET
Product description：6190ZLT-2 300KW 330KW 12V190DT-2 400KW 450KW 12V190ZDT-2 500KW 550KW 12V190ZDT1-2 600KW 660KW AD12V190ZLT2-2 800KW 880KW AD12V190ZLT-2 1000KW 1100KW H16Vl90ZLT-2 1200KW 1320KW
Order online

JICHAI Series Gas Generator Set (50Hz, 3Phases- 4Wires. P.F=0.8, Sea level <1000m)
Genset Model	Prime Power (kW/kVA)	Rated Voltage(V)	Rated Current (A)	Engine Model	Rated Power (kW)	Cylinder number	BoreStorke (mmmm)	Dspl.(L)
TJG-300GF	300/375	400/230	540	6190ZLT-2	330	6.L	190*210	35.7
TJG-400GF	400/500	400/230	720	12V190DT-2	450	12.V	190*210	71.4
TJG-500GF	500/625	400/230	900	12V190ZDT-2	550	12.V	190*210	71.4
TJG-600GF	600/750	400/230	1080	12V190ZDT1-2	660	12.V	190*210	71.4
TJG-800GF	800/1000	400/230	1440	AD12V190ZLT2-2	880	12.V	190*210	71.4
TJG-1000GF	1000/1250	400/230	1800	AD12V190ZLT-2	1100	12.V	190*210	71.4
TJG-1200GF	1200/1500	400/230	2165	H16Vl90ZLT-2	1320	16.V	190*215	97.4
For performance parameters of gensets at 60Hz or special Voltage. Please consult to the professional technicians of Thousands Tree Power . Thousands Tree Power reserves the right of final explanations.
