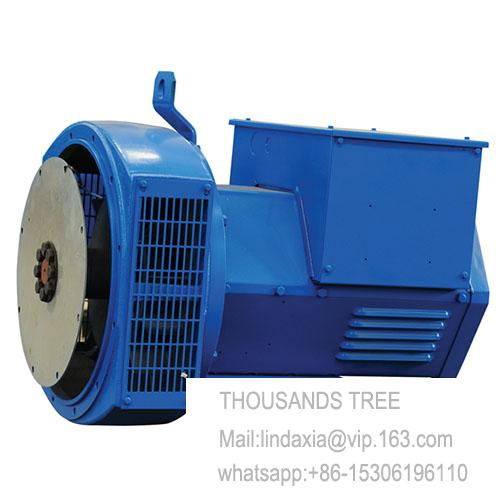

AC STAMFORD TYPE 2 POLE 3000RPM 3600RPM BRUSHLESS ALTERNATOR
- Product Item : TR162/182
- Category： ALTERNATOR
- Stamford Type lternator
- 3000RPM 3600RPM
- Three Phase Single phase
- 50HZ 60HZ
- Product description：SINGLE PHASE THREE PHASE TWO POLE 3000RPM 3600RPM 50HZ 60HZ STAMFORD TYPE ALTERNATOR BRUSHLESS ALTERNATOR 162D 162E 162F 162G 182H 182J 182K
| Generator Rating Table (2-pole 3-phase rating) | ||||||||||||||||
| Model | Three Phase 50Hz 3000PM | Three Phase 60Hz 3600RPM | ||||||||||||||
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||||||||
| Volts | ||||||||||||||||
| Series Star | 380 | 400 | 415 | 440 | 416 | 440 | 460 | 480 | ||||||||
| Parallel Star | 190 | 200 | 208 | 220 | 208 | 220 | 230 | 240 | ||||||||
| Series Delta | 220 | 230 | 240 | 254 | 240 | 254 | 266 | 277 | ||||||||
| Winding No. | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||||||||
| Rating | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW |
| TR162D | 12.5 | 10.0 | 12.5 | 10.0 | 12.5 | 10.0 | 12.0 | 9.6 | 14.7 | 11.8 | 15.6 | 12.5 | 15.6 | 12.5 | 15.6 | 12.5 |
| TR162E | 15.0 | 12.0 | 15.0 | 12.0 | 15.0 | 12.0 | 14.5 | 11.6 | 17.8 | 14.2 | 18.8 | 15.0 | 18.8 | 15.0 | 18.8 | 15.0 |
| TR162F | 17.5 | 14.0 | 17.5 | 14.0 | 17.5 | 14.0 | 16.5 | 13.2 | 20.8 | 16.6 | 21.9 | 17.5 | 21.9 | 17.5 | 21.9 | 17.5 |
| TR162G | 25.0 | 20.0 | 25.0 | 20.0 | 25.0 | 20.0 | 22.5 | 18.0 | 29.6 | 23.7 | 31.3 | 25.0 | 31.3 | 25.0 | 31.3 | 25.0 |
| TR182H | 30.0 | 24.0 | 30.0 | 24.0 | 30.0 | 24.0 | 27.0 | 21.6 | 33.0 | 26.4 | 35.0 | 28.0 | 35.0 | 28.0 | 35.0 | 28.0 |
| TR182J | 35.0 | 28.0 | 35.0 | 28.0 | 35.0 | 28.0 | 30.8 | 24.6 | 37.8 | 30.2 | 40.0 | 32.0 | 40.0 | 32.0 | 40.0 | 32.0 |
| TR182K | 37.5 | 30.0 | 37.5 | 30.0 | 37.5 | 30.0 | 35.0 | 28.0 | 44.3 | 35.4 | 46.9 | 37.5 | 46.9 | 37.5 | 46.9 | 37.5 |
| Generator Rating Table (2-pole 1-phase rating) | ||||||||||||||||||||||||
| Model | Single Phase 50Hz 3000RPM | Single Phase 60Hz 3600RPM | ||||||||||||||||||||||
| Power Factor | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | ||||||||||||
| Volts | ||||||||||||||||||||||||
| Series | 220 | 230 | 240 | 220 | 230 | 240 | 220 | 230 | 240 | 220 | 230 | 240 | ||||||||||||
| Parallel | 110 | 115 | 120 | 110 | 115 | 120 | 110 | 115 | 120 | 110 | 115 | 120 | ||||||||||||
| Winding No. | 05 | 05 | 05 | 05 | 05 | 05 | 06 | 06 | 06 | 06 | 06 | 06 | ||||||||||||
| Rating | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW | KVA | KW |
| TR162D | 8.4 | 6.7 | 8.4 | 6.7 | 8.4 | 6.7 | 9.6 | 9.6 | 9.6 | 9.6 | 10.0 | 10.0 | 10.0 | 8.0 | 10.0 | 8.0 | 10.0 | 8.0 | 11.5 | 11.5 | 11.5 | 11.5 | 12.0 | 12.0 |
| TR162E | 10.0 | 8.0 | 10.0 | 8.0 | 10.0 | 8.0 | 11.5 | 11.5 | 11.5 | 11.5 | 12.0 | 12.0 | 12.4 | 9.9 | 12.4 | 9.9 | 12.4 | 9.9 | 12.8 | 12.8 | 12.8 | 12.8 | 15.0 | 15.0 |
| TR162F | 11.8 | 9.4 | 11.8 | 9.4 | 11.8 | 9.4 | 13.5 | 13.5 | 13.5 | 13.5 | 14.5 | 14.5 | 14.4 | 11.5 | 14.4 | 11.5 | 14.4 | 11.5 | 16.6 | 16.6 | 16.6 | 16.6 | 17.5 | 17.5 |
| TR162G | 16.8 | 13.4 | 16.8 | 13.4 | 16.8 | 13.4 | 17.5 | 17.5 | 18.5 | 18.5 | 19.3 | 19.3 | 20.6 | 16.5 | 20.6 | 16.5 | 20.6 | 16.5 | 23.7 | 23.7 | 23.7 | 23.7 | 22.0 | 22.0 |
| TR182H | 20.0 | 16.0 | 20.0 | 16.0 | 20.0 | 16.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 24.8 | 19.8 | 24.8 | 19.8 | 24.8 | 19.8 | 24.8 | 24.8 | 24.8 | 24.8 | 24.8 | 24.8 |
| TR182J | 23.5 | 18.8 | 23.5 | 18.8 | 23.5 | 18.8 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 28.9 | 23.1 | 28.9 | 23.1 | 28.9 | 23.1 | 28.9 | 28.9 | 28.9 | 28.9 | 28.9 | 28.9 |
| TR182K | 25.0 | 20.0 | 25.0 | 20.0 | 25.0 | 20.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 31.0 | 24.8 | 31.0 | 24.8 | 31.0 | 24.8 | 31.0 | 31.0 | 31.0 | 31.0 | 31.0 | 31.0 |
We doing generator set ,engine ,alternator and engine spare parts for below
brands:Cummins,Perkins,Doosan,SDEC,Deutz,Weichai,Faw ,Lovol,Ricardo, AKSA generator and so on .
If you have any thing need please feel free to contact with us.
Whatsapp/Mobile:+86-15306196110
Mail:Lindaxia@vip.163.com
